WCE-45H Automatic Carton Erectors (Horizontal Type)

WCE-45H  Automatic Carton Erectors (Horizontal Type)

Automatic Carton Erectors

Product ID: WCE-45H

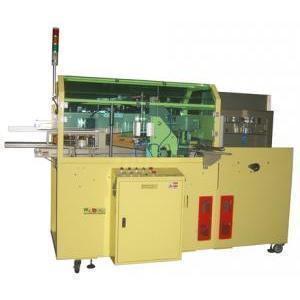

The WCE-45H is a Horizontal type Automatic Carton Erector. These system will increase your operation's productivity since they automatically erects cases of many different shapes and sizes and seals their bottoms with tape or hot glue on demand and a carton sealer is required to complete the auto packaging line process.



  • The automatic carton erectors adopts touch-screen panel. It is easy to operate the machine.

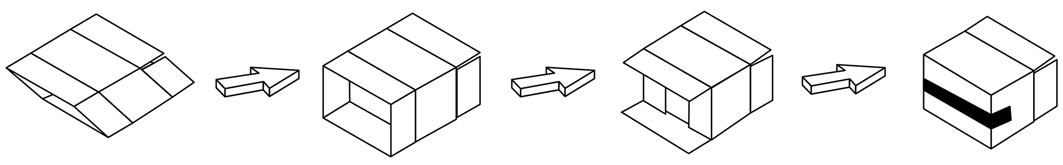

  • Fit for automatic packaging system, opening, forming, folding and sealing action accomplish at a time.
  • Vertical type storage can supply the un-opened carton anytime.
  • Carton erectors is easy to adjust for different size of carton.
  • Humanizing designed, easy to operate.

♣ Application
Equipment is used to erect, pack, seal the case bottom, or unpack cases of products.
In most instances, case equipment is used to form cardboard boxes and automatically
forms corrugated cases. The newly formed cases are sealed at the bottom with tape
or glue. The carton erector is required to complete the automatic packingin line process.

MODEL WCE-45H  Automatic Carton Erectors (Horizontal Type)
Machine Size  L3120xW1210xH1800mm
Carton Size L200~350mm / W150~250mm / H 100~200mm
Packaging  1~20 CTN/min (depends on carton's size and material)
Air pressure 4-6kg/cm2
Power Source 3 Ø 220V(Depend on customer's need)
