WSH-67 Carton Edge Sealer

WSH-67  Carton Edge Sealer


Product ID: WSH-67

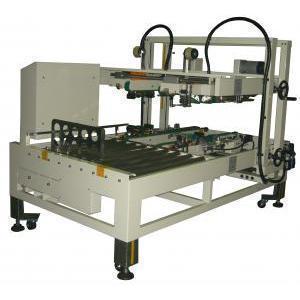

The WSH-67 is a uniform semi-auto case edge sealer. This top drive and bottom drive automatically edge sealer for box works in conjunction with the WCH-605S   semi-automatic case sealer. First the carton is sealed on the center line of the top and bottom of the carton, then the carton is pushed off 90 degrees into the edge sealer where it completes the "H" seal top and bottom. This case sealing machine has been designed and manufactured according to the CE standard. 2" taping heads or 3" taping heads are according to customer required.


  • The height and width of the Semi-auto Carton Edge Sealer are easily adjusted by crank handle.
  • Carton Edge Sealer is suitable for few carton sizes production line.
  • Tape Width: 2" or 3" (according to customer's need).

♣ Application

WONDERFUL AUTOMATION Case Sealers are designed to fulfill your production requirements. The case sealing machine is great for both top and / or bottom box sealing with tape or glue . The case sealers are designed for a variety of different needs: uniform or random case sizes, narrow or wide tape, top and bottom sealing, side sealing, automatic flap folding etc. The case sealers may be used as part of individual packaging stations or as part of a fully automatic packaging line., and also a hot-melt adhesive is applied.

MODEL WSH-67  Carton Edge Sealer
Machine Size  L2100xW1270xH1600mm
Carton Size L280~700mm / W200~600mm / H 200~600mm
Convey Speed 20M / min
Seal paste method H type
Air pressure 4-6kg/cm2
Power Source 3 Ø 220V(Depend on customer's need)
